Introduction¶

Version:	0.11
Date:	May 03, 2015
Keywords:	python, plot, graph, nvd3, d3
Author:	Arezqui Belaid
License:	MIT
Description:	Python wrapper for nvd3, build re-usable charts and chart components for d3.js
NVD3:	NVD3 http://nvd3.org/

–

Python-nvd3 is a Python wrapper for NVD3 graph library. NVD3 is an attempt to build re-usable charts and chart components for d3.js without taking away the power that d3.js gives you.

Overview¶

Python-nvd3 is a Python wrapper for NVD3 graph library. Visit NVD3 website for futher information : http://nvd3.org/

Installation¶

Install, upgrade and uninstall python-nvd3.py with these commands:

$ sudo pip install python-nvd3
$ sudo pip install --upgrade python-nvd3
$ sudo pip uninstall python-nvd3

Or if you don’t have pip:

$ sudo easy_install python-nvd3

Usage¶

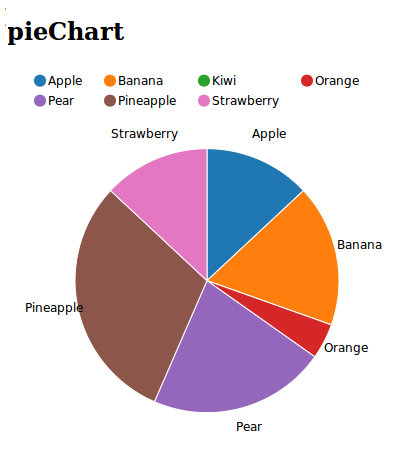

After installation use python-nvd3 as follows

from nvd3 import pieChart

#Open File to write the D3 Graph
output_file = open('test-nvd3.html', 'w')

type = 'pieChart'
chart = pieChart(name=type, color_category='category20c', height=450, width=450)
chart.set_containerheader("\n\n<h2>" + type + "</h2>\n\n")

xdata = ["Orange", "Banana", "Pear", "Kiwi", "Apple", "Strawberry", "Pineapple"]
ydata = [3, 4, 0, 1, 5, 7, 3]

extra_serie = {"tooltip": {"y_start": "", "y_end": " cal"}}
chart.add_serie(y=ydata, x=xdata, extra=extra_serie)
chart.buildhtml()
output_file.write(chart.htmlcontent)

#close Html file
output_file.close()

See our examples directory for more usage.

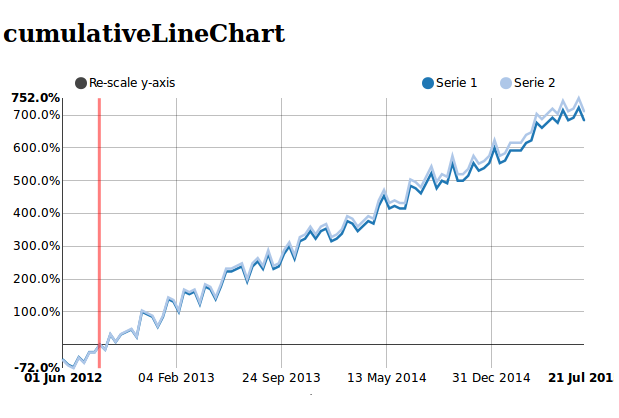

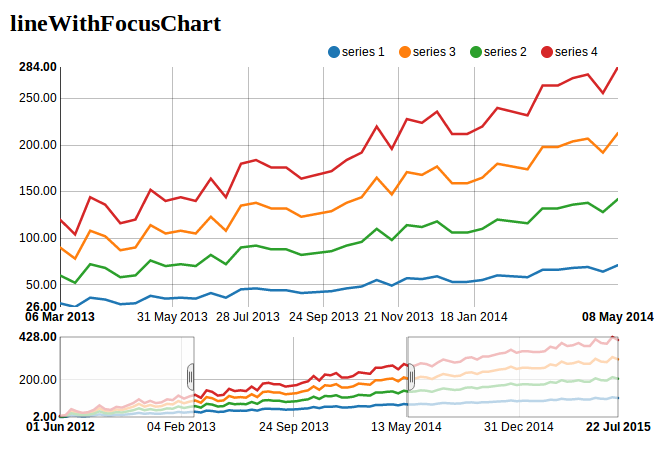

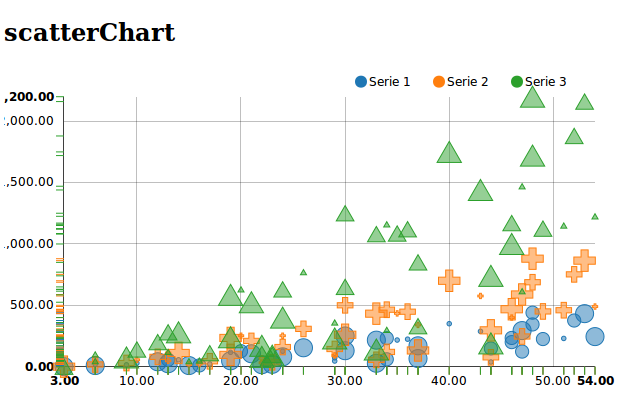

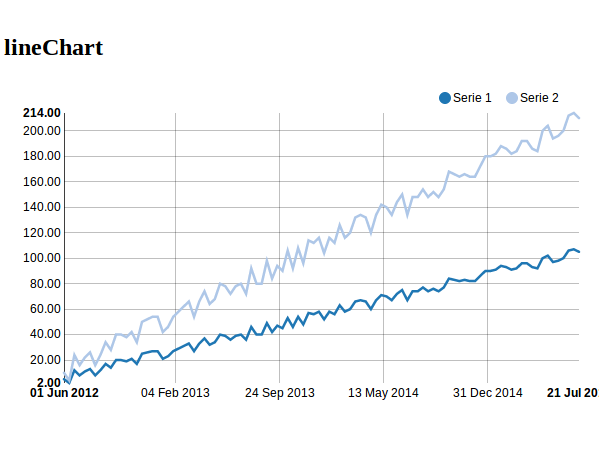

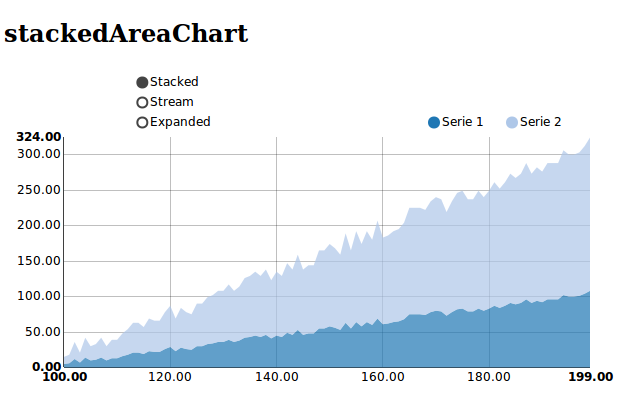

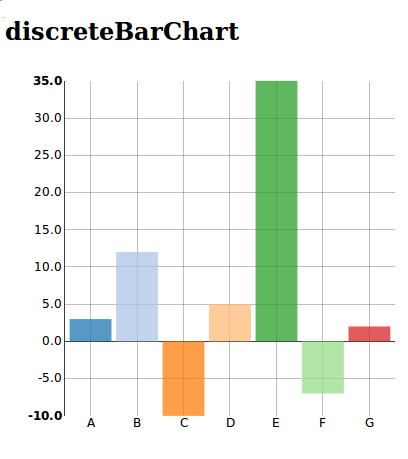

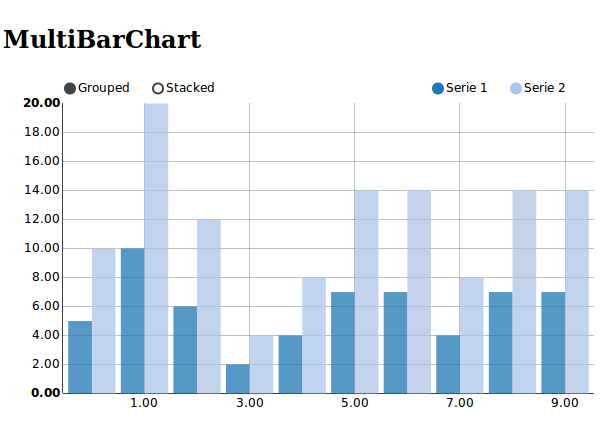

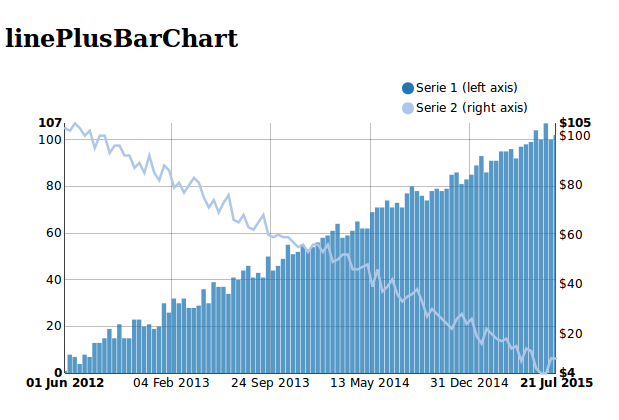

Supported nvd3 charts¶

Live demo of NVD3¶

See a live demo on jsfiddle : http://jsfiddle.net/areski/z4zuH/246/

Documentation¶

Documentation is available on ‘Read the Docs’: http://python-nvd3.readthedocs.org

Contributing¶

If you’ve found a bug, add a feature or improve python-nvd3 and think it is useful then please consider contributing. Patches, pull requests or just suggestions are always welcome!

Source code: http://github.com/areski/python-nvd3

If you don’t like Github and Git you’re welcome to send regular patches.

Bug tracker: http://github.com/areski/python-nvd3/issues

License¶

Python-nvd3 is licensed under MIT, see MIT-LICENSE.txt.
